OUTER SEGMENTED DIAMOND WHEELS

Outer segmented diamond wheel is made of Premium metal powder and self-produced synthetic diamond grits, sintered in high temperature and high pressure. The appearance looks like outer serrated, which design can improve the cutting force of the grinding wheel; and contribute to the work of water and excretion, reduce the temperature in working,and protect the glass from heat (burns, explodes, etc.)  According to the shape, this product can be divide into bowl-wheel and cup- wheel. And bowl-shaped wheel always used for glass bevel edging machine.cup-shaped wheel always used for glass straight edging machine and glass double edging machine.

OUTER SEGMENTED DIAMOND WHEEL OF ADVANTAGE:

High sharpness, no chipping, high strength, high thermal/heat resistance,etc.

OUTER SEGMENTED DIAMOND WHEEL OF PICTURES AND DRAWING:

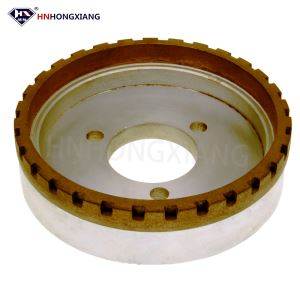

CUP-WHEEL

BOWL WHEEL

OUTER SEGMENTED DIAMOND WHEEL OF GENERAL PARAMETER:

SPECIAL PARAMETERS CAN BE CUSTOMIZED ACCORDING TO CUSTOMER NEEDS.

OUTER SEGMENTED DIAMOND WHEEL OF APPLICATION:

Outer segmented diamond wheel is commonly used in processing of construction glass, furniture glass, electronics glass, appliances glass, and bothroom glass,etc. Such as architectural glass doors and windows, glass table, glass rods, indoor screen glass,glass office partition wall, etc.

OUTER SEGMENTED DIAMOND WHEEL FOR APPLICABLE MACHINE:

glass straight edging machine, glass double edging machine,glass bevel edging machine.

CUP-shaped wheel always installs on the straight edging machine and double edging machine 1# ,2# grinding motor; and the bowl-shaped wheel also installs on the  glass bevel edging machine 1# ,2# grinding motor,. Both of them are commonly uses diamond grits are 80#,100#, glass thickness is from 3 to 30mm can be grinding. Of course, We can provide professional guidance on the choice of grinding wheel and the installation,which according to our customer`s need.

Suitable for all the edging machine brand on the market,such as Deway，ZXM，BOTTERO、BAVELLONI、bovone，Schiatti angelo, etc.

THESE WHEELS CAN BE WORKED WITH TOGETHER:

Using for double edging machine: Full segmented diamond wheel, continuous diamond grinding wheel,resin diamond grinding wheel,diamond pencil edge grinding wheel, 10S polishing wheel.X5000 polishing wheel,or CE-3 polishing wheel,etc.

USING FOR BEVEL EDGING MACHINE:

resin diamond grinding wheel, diamond pencil edge wheel, diamond trapezoidal edge wheel, wool felt wheel,etc.

ATTENTION FOR USING DIAMOND WHEEL:

1, Before using diamond wheel, you should better check the wheel is or not intact(Cracked, passivation).

2,According the process of “coarse grinding-medium grinding-fine grinding-fine polishing”, the wheel should be install in the correct position and suitable machine.

3,The wheel should install the correct position, and should be passed static balance test before using.

4,Water is very important in the using of diamond wheel to grinding, which not only can improve the working efficiency and prolongs the service life of diamond wheel.

5,To choose an appropriate speed is also important. Speed too fast, force too much, May cause damage to the grinding wheel, and even the operator injured.

6,In the grinding process if the grinding wheel is not sharp enough or blocked,the grinding wheel should be trimmed slightly.

7,diamond wheel is a valuable tools,don`t leave in disorder, especially can not be affected with damp, erosion, impact,and also should not be exposed to high temperature.
