RESIN DIAMOND GRINDING WHEEL( NOISE REDUCTION) OF PRODUCT INTRODUCE:

 Resin diamond grinding wheel adopt bakelite as the matrix, mixed with a certain formula of premium resin powder and self-produced synthetic diamond grits, sintered in high temperature and high pressure. Compared with the traditional aluminum alloy matrix, bakelite matrix with good elasticity, light weight, low noise, and not easy to cause the deformation and damage of the grinding wheel. This product is commonly used in glass bevel edging machine for the medium grinding.

RESIN DIAMOND GRINDING WHEEL( NOISE REDUCTION) OF ADVANTAGE:

Good sharpness, no chipping, better wear resistance, long service life, high finishing surface, less scratches on the workpiece`s surface,etc.

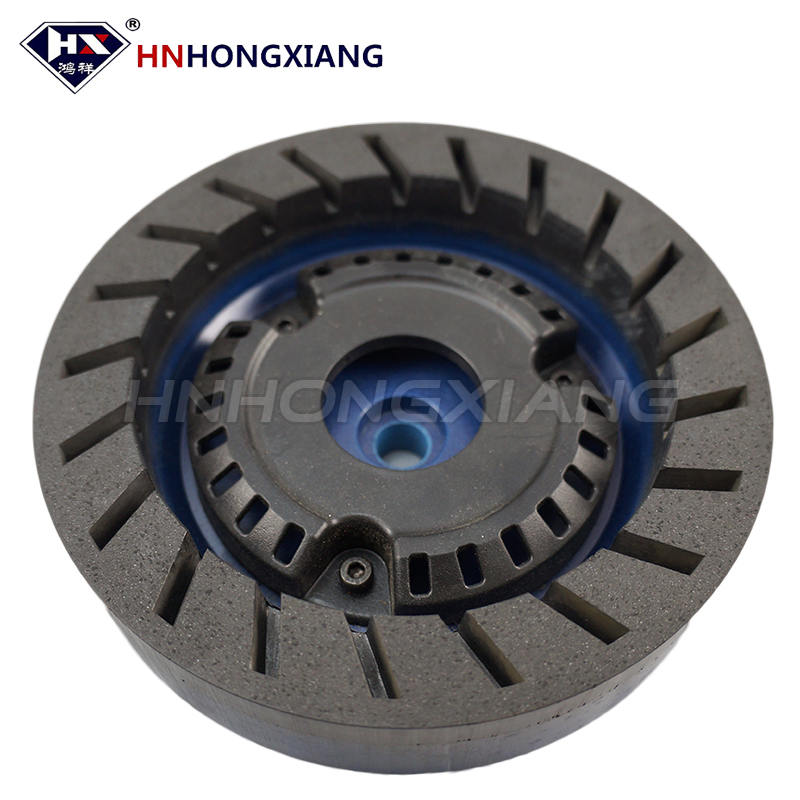

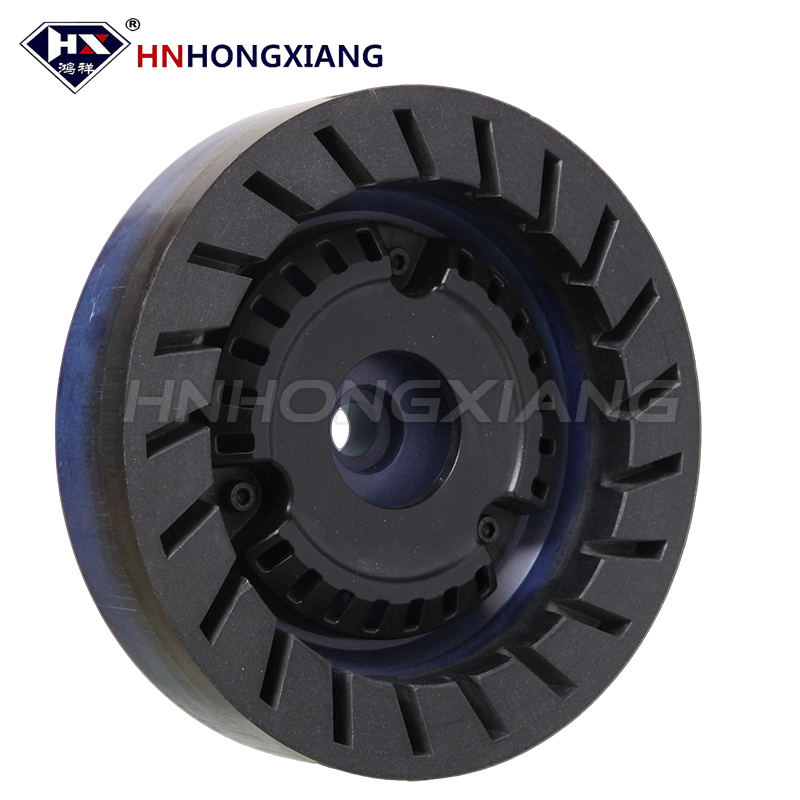

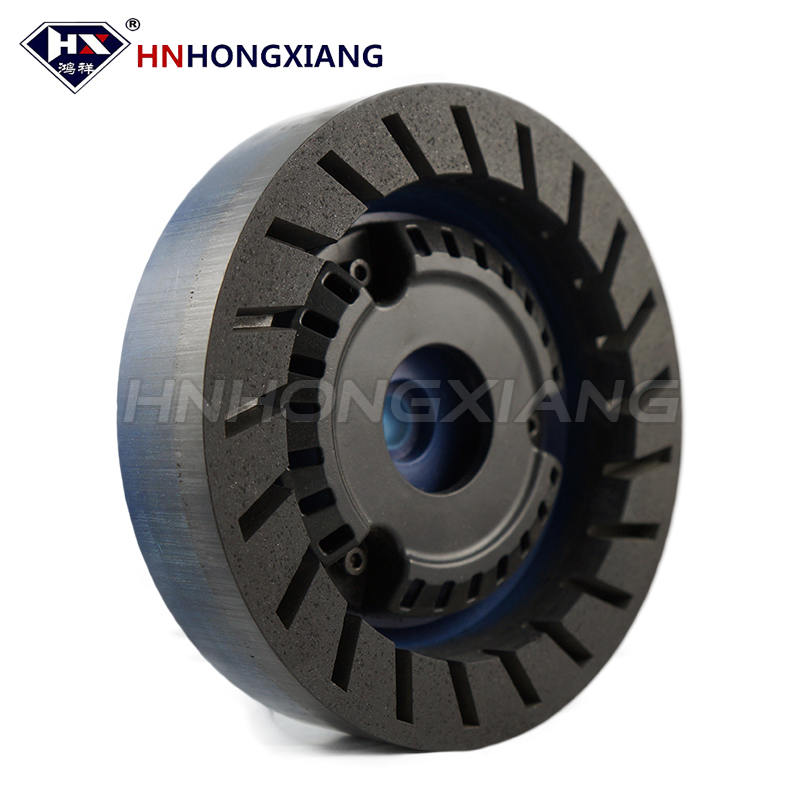

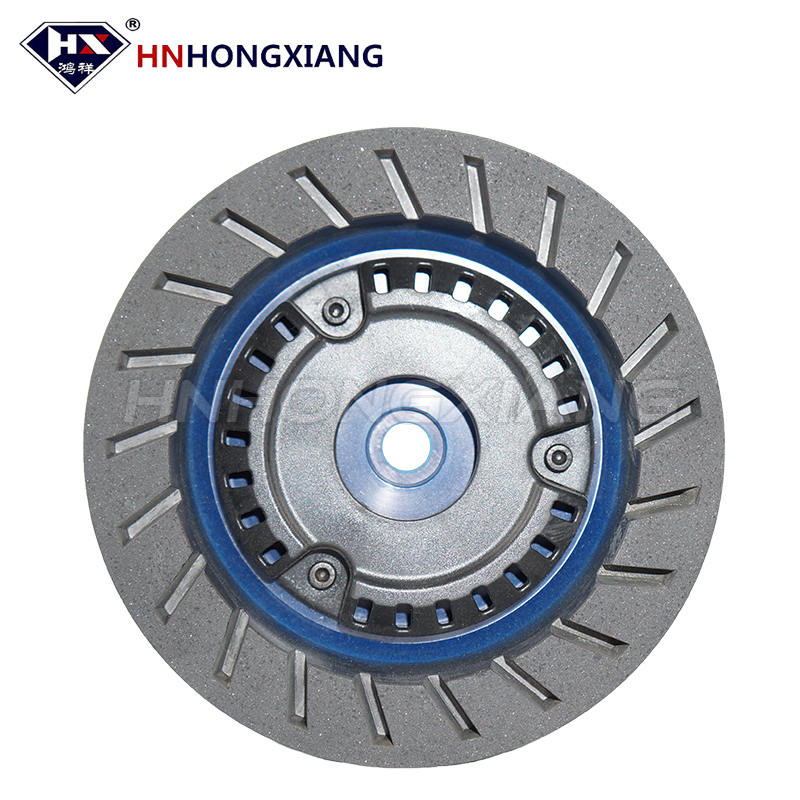

RESIN DIAMOND GRINDING WHEEL( NOISE REDUCTION) OF PICTURES AND DRAWING:

RESIN DIAMOND GRINDING WHEEL( NOISE REDUCTION) OF GENERAL PARAMETER:

SPECIAL PARAMETERS CAN BE CUSTOMIZED ACCORDING TO CUSTOMER NEEDS

RESIN DIAMOND GRINDING WHEEL( NOISE REDUCTION) OF APPLICATION:

Resin diamond grinding wheel is commonly used for processing of construction glass, furniture glass, electronics glass, appliances glass, and bothroom glass,etc. Such as architectural glass doors and windows, glass table, glass rods, indoor screen glass,glass office partition wall, etc.

RESIN DIAMOND GRINDING WHEEL( NOISE REDUCTION) FOR APPLICABLE MACHINE:

glass bevel edging machine.

Resin diamond grinding wheel can be installed on the glass bevel edging machine`s 3# ,4#,5#.6# grinding motor for medium grinding, the particle size can be chosen from coarse to fine180#,240#,320#,400#,500#,etc; Glass thickness is from 3 to 30mm can be grinding. Of course, We can according to our customer`s need,to provide professional guidance on the choice of grinding wheel and the installation,etc.

Suitable for all the edging machine brand on the market,such as Deway，ZXM，BOTTERO、BAVELLONI、bovone，Schiatti angelo, etc.

THESE WHEELS CAN BE WORKED WITH TOGETHER:

Outer segmented diamond grinding wheel,diamond pencil edge grinding wheel, trapezoidal edge grinding wheel,wool felt wheel,etc.

ATTENTION FOR USING DIAMOND WHEEL:

1, Before using polishing wheel, you should better check the wheel is or not intact(Cracked, passivation).

2,According the process of “coarse grinding-medium grinding-fine grinding-fine polishing”, the wheel should be install in the correct position and suitable machine.

3,The wheel should install the correct position, and should be passed static balance test before using.

4,Water is very important in the using of diamond wheel to grinding, which not only can improve the working efficiency and prolongs the service life of diamond wheel.

5,To choose an appropriate speed is also important. Speed too fast, force too much, May cause damage to the grinding wheel, and even the operator injured.

6,In the grinding process if the grinding wheel is not sharp enough or blocked,the grinding wheel should be trimmed slightly.

7,diamond wheel is a valuable tools,don`t leave in disorder, especially can not be affected with damp, erosion, impact,and also should not be exposed to high temperature.
