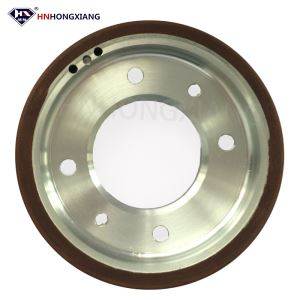

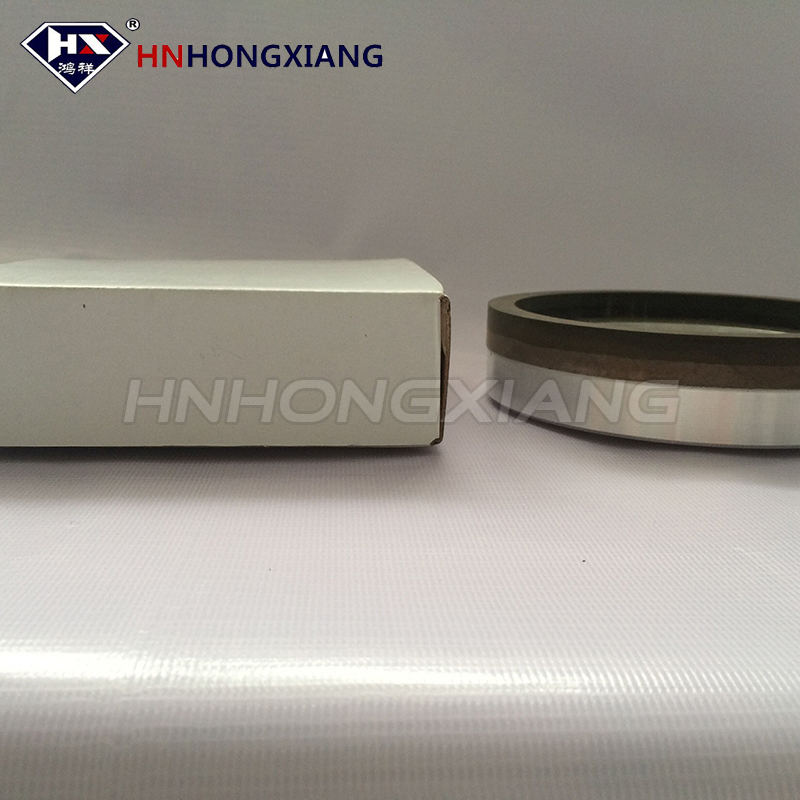

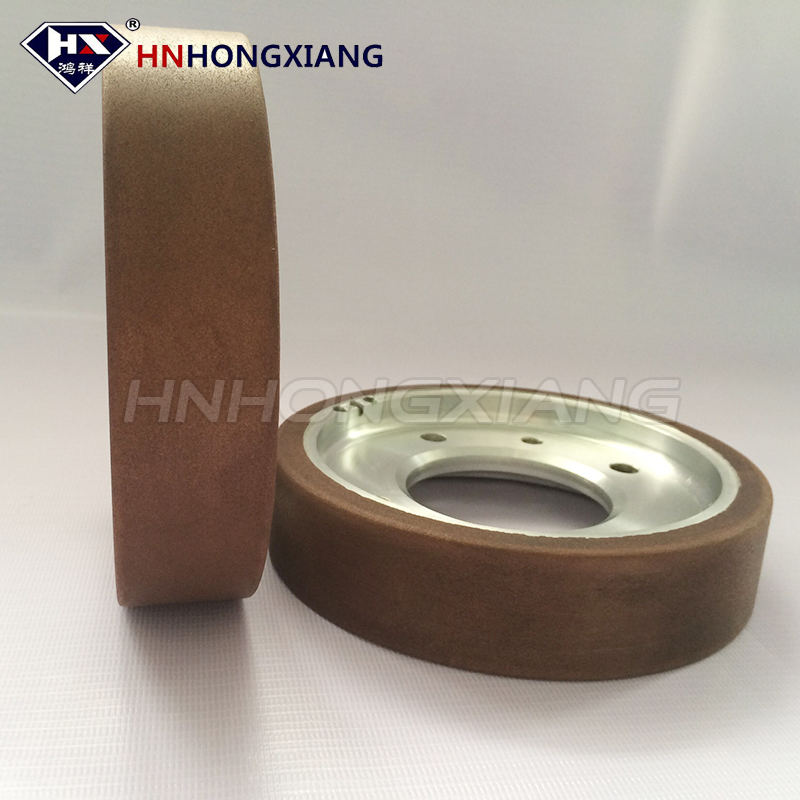

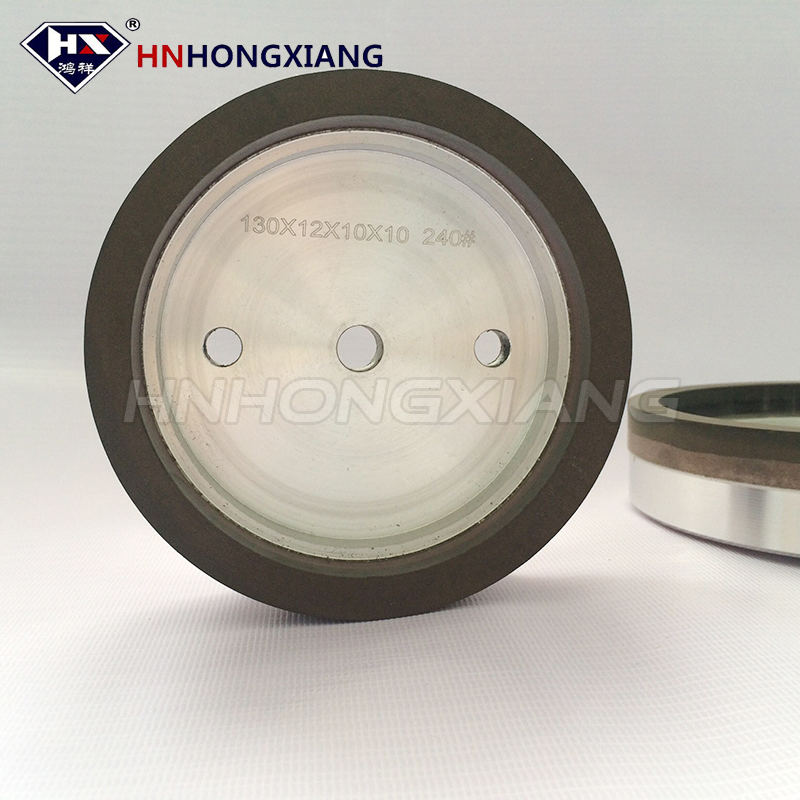

FOUR SIDE DIAMOND RESIN WHEEL OF PRODUCT INTRODUCE:

Resin diamond grinding wheel adopt aluminium as the matrix, mixed with a certain formula of premium resin powder and self-produced synthetic diamond grits, sintered in high temperature and high pressure. This product is commonly used in glass four edging machine for the medium grinding.

FOUR SIDE DIAMOND RESIN WHEEL OF ADVANTAGE:

no chipping, better wear resistance, long service life, can grind glass with a variety of thickness .etc.

FOUR SIDE DIAMOND RESIN WHEEL OF PARAMETER:

SPECIAL PARAMETERS CAN BE CUSTOMIZED ACCORDING TO CUSTOMER NEEDS

FOUR SIDE DIAMOND RESIN WHEEL OF APPLICATION:

Resin diamond grinding wheel is commonly used for processing of insulating glass, laminated glass,tempered glass,etc.

FOUR SIDE DIAMOND RESIN WHEEL FOR APPLICABLE MACHINE:

glass four edging machine.

Four side diamond resin wheel is mainly used in the four sides edging machine on the 4-12 (mm) of the tempered glass, laminated glass, hollow glass chamfering and bottom grinding. and can complete the grinding at one time.

Applicable Machines

ATTENTION FOR USING DIAMOND WHEEL:

1, Before using diamond wheel, you should better check the wheel is or not intact(Cracked, passivation).

2,According the process of “coarse grinding-medium grinding-fine grinding-fine polishing”, the wheel should be install in the correct position and suitable machine.

3,The wheel should install the correct position, and should be passed static balance test before using.

4,Water is very important in the using of diamond wheel to grinding, which not only can improve the working efficiency and prolongs the service life of diamond wheel.

5,To choose an appropriate speed is also important. Speed too fast, force too much, May cause damage to the grinding wheel, and even the operator injured.

6,In the grinding process if the grinding wheel is not sharp enough or blocked,the grinding wheel should be trimmed slightly.

7,diamond wheel is a valuable tools,don`t leave in disorder, especially can not be affected with damp, erosion, impact,and also should not be exposed to high temperature.
