RESIN DIAMOND GRINDING WHEEL(CUP WHEEL) OF PRODUCT INTRODUCE:

 Resin diamond grinding wheel adopt aluminum as the matrix, mixed with a certain formula of premium resin powder and self-produced synthetic diamond grits, sintered in high temperature and high pressure. Commonly used in glass straight edging machine and double edging machine for the medium grinding and chamfering.

RESIN DIAMOND GRINDING WHEEL(CUP WHEEL) OF ADVANTAGE:

Good sharpness, no chipping, better wear resistance, long service life, can grind glass with a variety of thickness .etc.

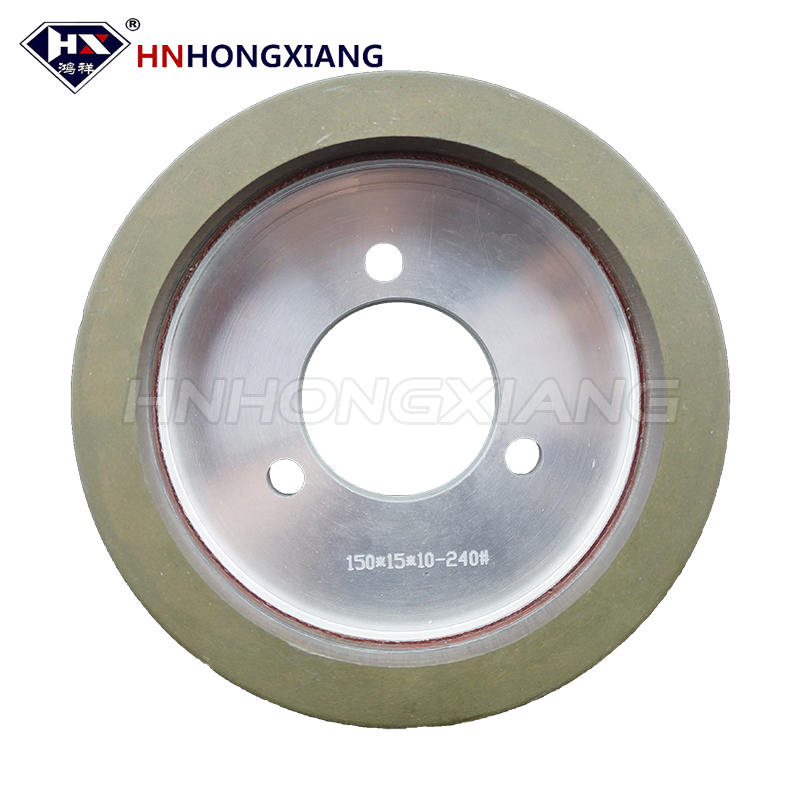

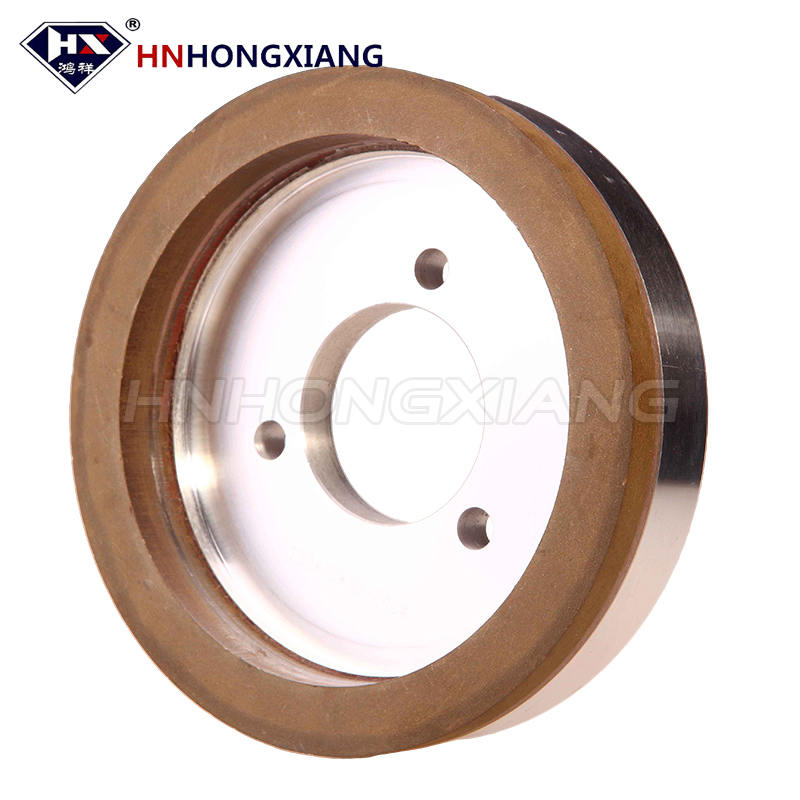

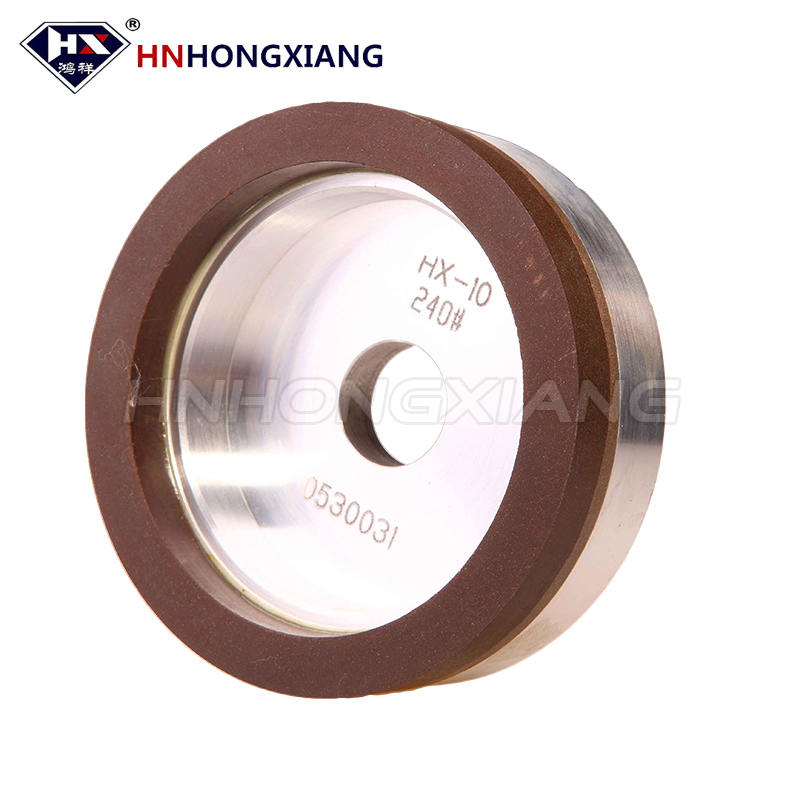

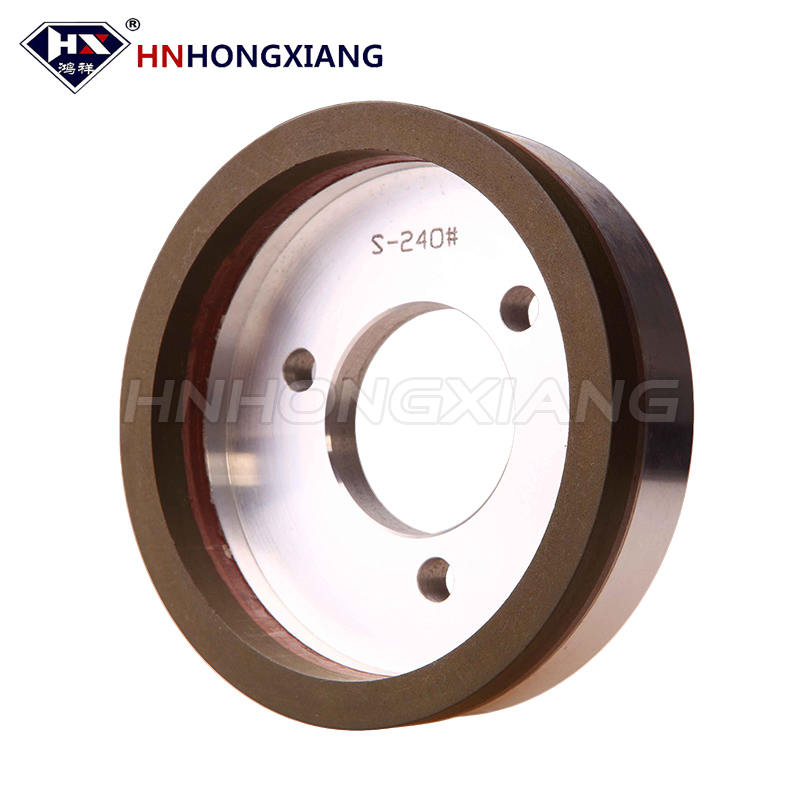

RESIN DIAMOND GRINDING WHEEL(CUP WHEEL) OF PICTURES AND DRAWING:

RESIN DIAMOND GRINDING WHEEL(CUP WHEEL) OF GENERAL PARAMETER:

SPECIAL PARAMETERS CAN BE CUSTOMIZED ACCORDING TO CUSTOMER NEEDS

RESIN DIAMOND GRINDING WHEEL(CUP WHEEL) FOR APPLICABLE MACHINE:

glass straight edging machine, glass double edging machine.

Located at straight edging machine and double edging machine`s 2# ,3# grinding motor for medium grinding, the diameter of 150mm`s wheel will be chosen for medium grinding,diamond grits is 180#; Located at straight edging machine and double edging machine`s 3# ,4#,5# grinding motor, the diameter of 130mm`s wheel is used for chamfering,diamond grits is 240#. Glass thickness is from 3 to 30mm can be grinding. Of course, We can provide professional guidance on the choice of grinding wheel and the installation,according to our customer`s need.

Suitable for all the edging machine brand on the market,such as Deway，ZXM，BOTTERO、BAVELLONI、bovone，Schiatti angelo, etc.

THESE WHEELS CAN BE WORKED WITH TOGETHER:

Continuous diamond grinding wheel,diamond pencil edge grinding wheel, 10S polishing wheel.X5000 polishing wheel,or CE-3 polishing wheel.
