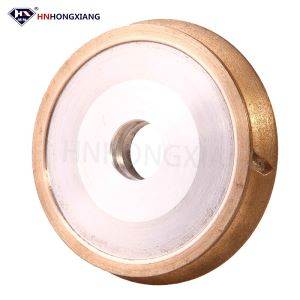

OG DIAMOND WHEEL OF PRODUCT INTRODUCE:

Parallel wheel. OG Diamond Wheels is made of Premium metal powder and self-produced synthetic diamond grits, sintered in high temperature and high pressure. widely used for processing  glass for 3 to 20mm, wire speed can up to 12m / min or more.This product can process glass edge into a OG shape which according to customer`s need. Widely used for shaped glass edging machines and CNC machining centers

OG DIAMOND WHEEL OF ADVANTAGE

Small grinding resistance, high efficiency, less consumption of wheel, longer service life,good finish surface and also can improving the working condition.

OG DIAMOND WHEEL OF PICTURES AND DRAWING:

SPECIAL PARAMETERS CAN BE CUSTOMIZED ACCORDING TO CUSTOMER NEEDS

OG DIAMOND WHEEL OF APPLICATION:

In the glass deep processing, this product can process the glass edge into a OG shape. such as, furniture glass, home appliances glass, decorative glass,etc.

OG DIAMOND WHEEL FOR APPLICABLE MACHINE:

shaped glass edging machine, CNC machining center and glass chamfering machine.

PROCESSING FOR MACHINES

Can be installed on all kinds of brands machines,such as shaped glass edging machine, CNC machining center, glass chamfering machine, etc. which products can process the glass edge into a OG shape.

Suitable for all the edging machine brand on the market,such as Deway，ZXM，BOTTERO、BAVELLONI、bovone，Schiatti angelo, etc.

THESE WHEELS CAN BE WORKED WITH TOGETHER:

Full segmented diamond wheel, continuous diamond grinding wheel,resin diamond grinding wheel, all kinds of parallel diamond grinding wheel, 10S polishing wheel, X5000 polishing wheel or CE-3 polishing wheel.

ATTENTION FOR USING DIAMOND WHEEL:

1, Before using diamond wheel, you should better check the wheel is or not intact(Cracked, passivation).

2,According the process of “coarse grinding-medium grinding-fine grinding-fine polishing”, the wheel should be install in the correct position and suitable machine.

3,The wheel should install the correct position, and should be passed static balance test before using.

4,Water is very important in the using of diamond wheel to grinding, which not only can improve the working efficiency and prolongs the service life of diamond wheel.

5,To choose an appropriate speed is also important. Speed too fast, force too much, May cause damage to the grinding wheel, and even the operator injured.

6,In the grinding process if the grinding wheel is not sharp enough or blocked,the grinding wheel should be trimmed slightly.

7,diamond wheel is a valuable tools,don`t leave in disorder, especially can not be affected with damp, erosion, impact,and also should not be exposed to high temperature.
