PERIPHERAL SEGMENTED DIAMOND WHEEL OF PRODUCT INTRODUCE:

Parallel wheel. Peripheral Segmented Diamond Wheel is made of Premium metal powder and self-produced synthetic diamond grits, sintered in high temperature and high pressure.The appearance looks like jagged edge, which design can improve the cutting force of the grinding wheel; and contribute to the work of water and excretion, reduce the temperature in working,and protect the glass from heat (burns, explodes, etc.).With a diamond grain size is 80/100 #,It is a special grinding wheel used to coarse grinding the bevel edge of glass.

PERIPHERAL SEGMENTED DIAMOND WHEEL OF ADVANTAGE

High strength, good sharp, not chipping, high temperature resistance, long service life,etc.

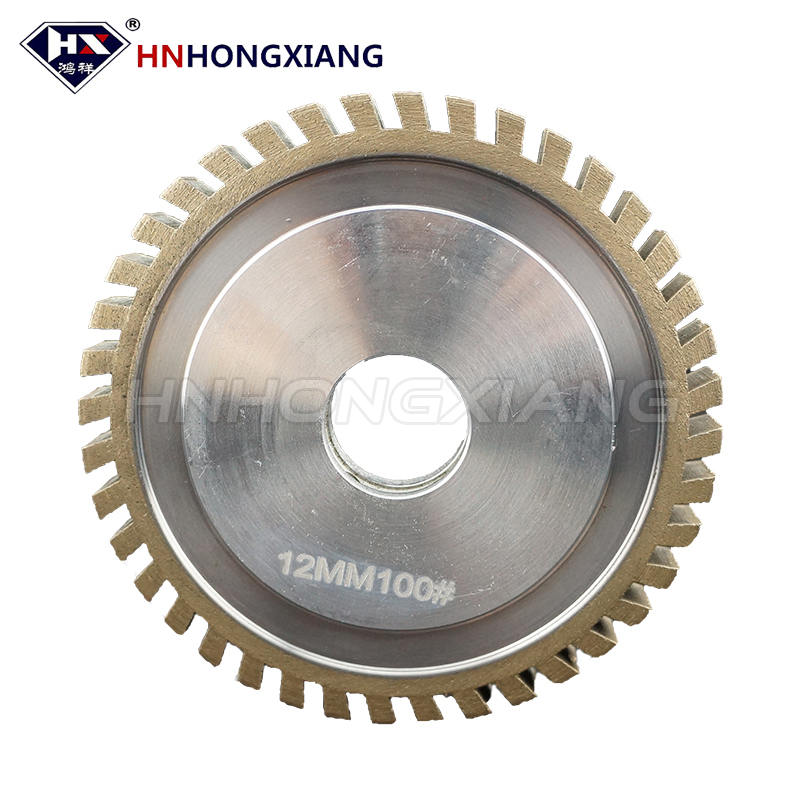

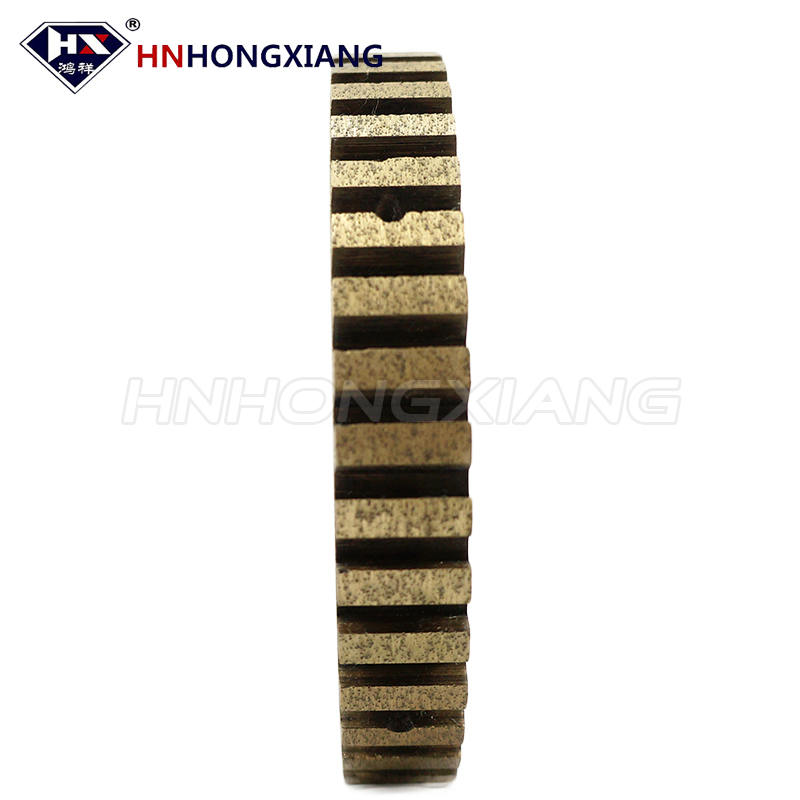

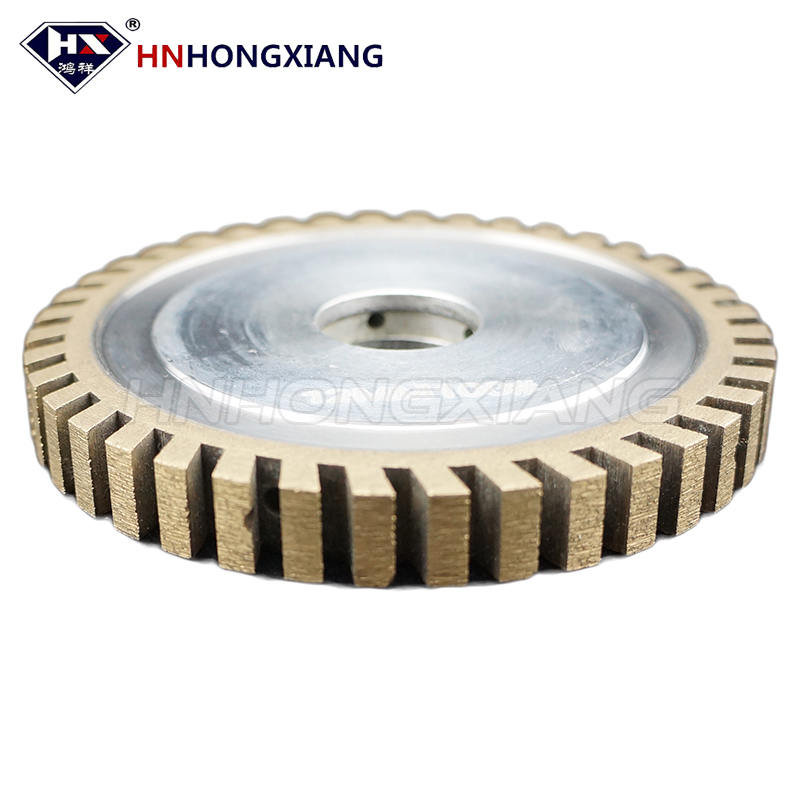

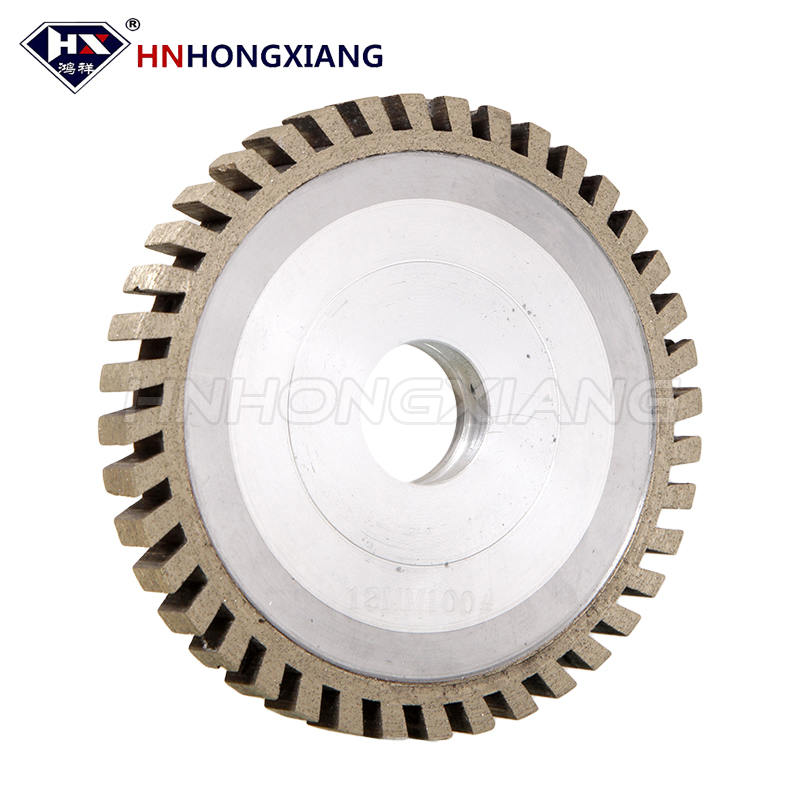

PERIPHERAL SEGMENTED DIAMOND WHEEL OF PICTURE :

PERIPHERAL SEGMENTED DIAMOND WHEEL OF PARAMETER:

PERIPHERAL SEGMENTED DIAMOND WHEEL OF APPLICATION:

Commonly used in processing, construction glass, furniture glass, electronics glass, appliances glass, bathroom glass,etc.

PERIPHERAL SEGMENTED DIAMOND WHEEL FOR APPLICABLE MACHINE:

Shaped glass edging machine, CNC machining center

APPLICABLE MACHINES

Can be installed on all kinds of brands machines,such as shaped glass edging machine, CNC machining center, glass chamfering machine, etc.

Suitable for all the edging machine brand on the market,such as Deway，ZXM，BOTTERO、BAVELLONI、bovone，Schiatti angelo, etc.

THESE WHEELS CAN BE WORKED WITH TOGETHER:

 All kinds of parallel diamond grinding wheel, 10S polishing wheel.X5000 polishing wheel,or CE-3 polishing wheel.

ATTENTION FOR USING DIAMOND WHEEL:

1, Before using diamond wheel, you should better check the wheel is or not intact(Cracked, passivation).

2,According the process of “coarse grinding-medium grinding-fine grinding-fine polishing”, the wheel should be install in the correct position and suitable machine.

3,The wheel should install the correct position, and should be passed static balance test before using.

4,Water is very important in the using of diamond wheel to grinding, which not only can improve the working efficiency and prolongs the service life of diamond wheel.

5,To choose an appropriate speed is also important. Speed too fast, force too much, May cause damage to the grinding wheel, and even the operator injured.

6,In the grinding process if the grinding wheel is not sharp enough or blocked,the grinding wheel should be trimmed slightly.

7,diamond wheel is a valuable tools,don`t leave in disorder, especially can not be affected with damp, erosion, impact,and also should not be exposed to high temperature.
