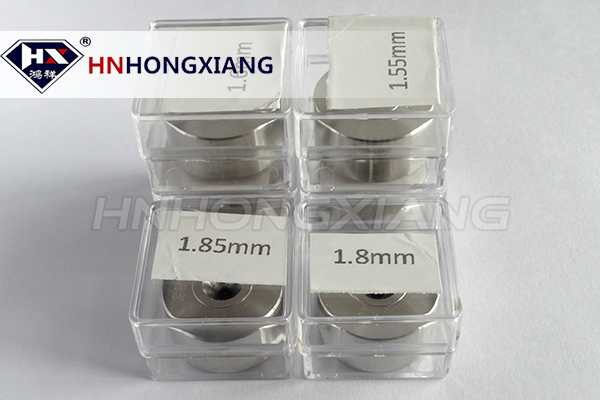

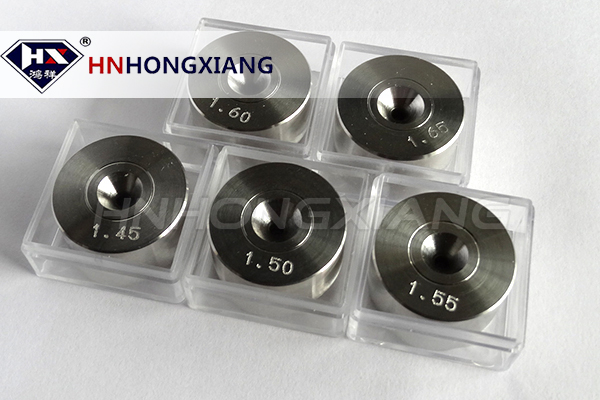

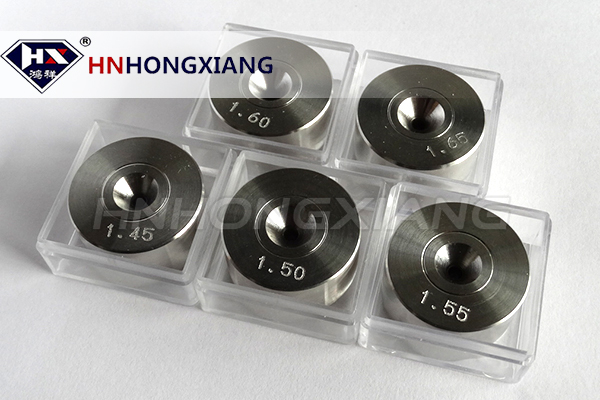

Polycrystalline diamond wire drawing dies

size:

type: 0.08-15mm

Applied to:

PCD die has longer working life and when hole becomes bigger , it can be fixed by many times to get recycle use. And its usage range is huge , hole range is 0.08-15mm.

Tel:+86-15537179206
E-mail:admin@hnhongxiang-diamond.com
PDF:DownLoad

Chat Now Message

Specification
Description
Related Products
Exhibition
Inquiry

Item	Hole	Case	Grit	Usage	PCD size
Item	mm	mm	um	Usage	PCD size
PCD die	0.100-0.300	25*12	5-10	Soft metal wire	2510
PCD die	0.301-0.500	25*12	5-10	Soft metal wire	2510
PCD die	0.501-1.000	25*12	5-10	Soft metal wire	3215
PCD die	1.001-1.200	25*12	5-10	Soft metal wire	4020
PCD die	1.201-1.500	25*12	5-10	Soft metal wire	5225
PCD die	1.501-1.700	28*12	5-10	Soft metal wire	5235
PCD die	1.701-1.900	28*12	5-10	Soft metal wire	5235
PCD die	1.901-2.100	28*12	5-10	Soft metal wire	6040
PCD die	2.101-2.300	28*12	5-10	Soft metal wire	6040
PCD die	2.301-2.500	30*15	5-10	Soft metal wire	6040
PCD die	2.501-2.800	30*15	5-10	Soft metal wire	6040
PCD die	2.801-3.000	30*15	5-10	Soft metal wire	6040
PCD die	3.001-3.300	30*15	5-10	Soft metal wire	7040
PCD die	3.301-3.500	30*15	5-10	Soft metal wire	8040
PCD die	3.501-3.800	40*25	5-10	Soft metal wire	10*6
PCD die	3.801-4.500	40*25	5-10	Soft metal wire	13*8
PCD die	4.501-5.000	40*25	5-10	Soft metal wire	14*10
PCD die	5.001-5.500	40*25	5-10	Soft metal wire	14*10
PCD die	5.501-6.000	40*25	5-10	Soft metal wire	16*10
PCD die	6.001-6.500	50*27	5-10	Soft metal wire	18*10
PCD die	6.501-7.000	50*27	5-10	Soft metal wire	18*10

Description

PCD die has longer working life and when hole becomes bigger , it can be fixed by many times to get recycle use. And its usage range is huge , hole range is 0.08-15mm.
