DETAILED PRODUCT DESCRIPTION:

Electroplating drill bit is produced by  high-quality and self-produced diamond sands,After a special strengthening electroplating, the diamond sands are firmly fixed and uniformly exposed on the surface of matrix. The jagged design on the working layer,not only can help to water and chipping discharge, but also help to improve the working efficiency ,prolong the service life of the drill bit. electroplate diamond drill bit is only have a straight shank, it`s diameter can be produced from 1.5 to 150mm, in addition, the length of diameter and the shank is equilong if the drill bit below 5mm,pls note: this product can not be used with the chamfering sleeve.

ELECTROPLATE DIAMOND DRILL BIT OF ADVANTAGE:

Sharp grinding and easy excretion, good self-sharpening,  smoothly hole-edge , no broken and no vibration, well resistance, long service life,and low cost,etc.

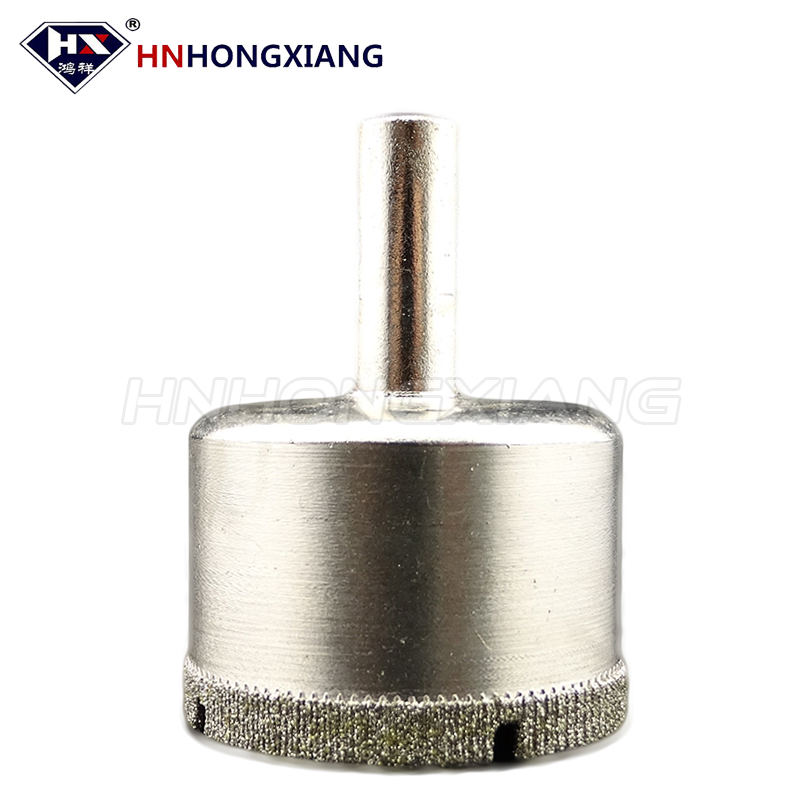

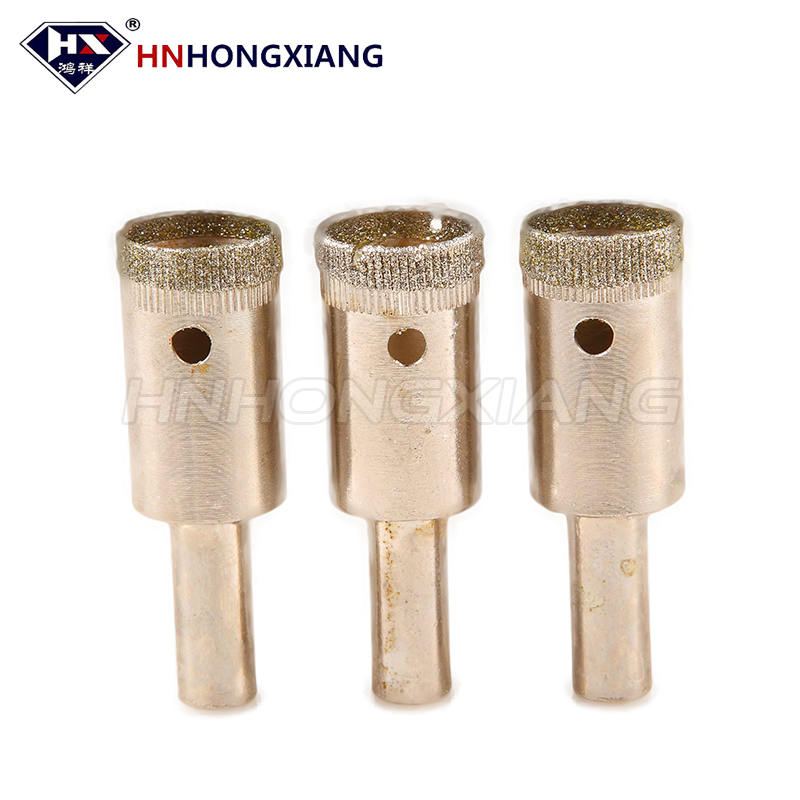

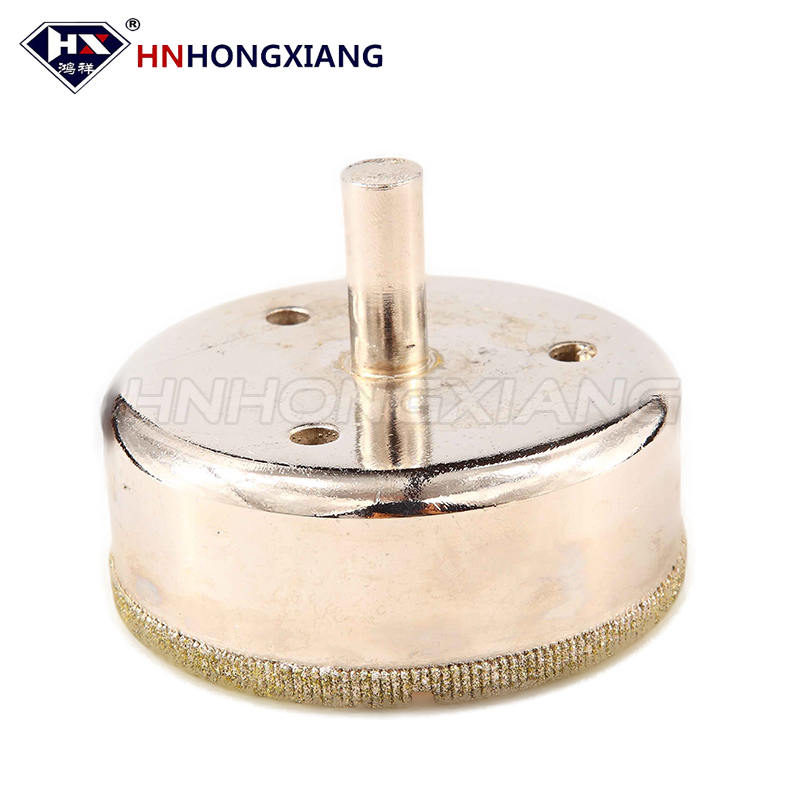

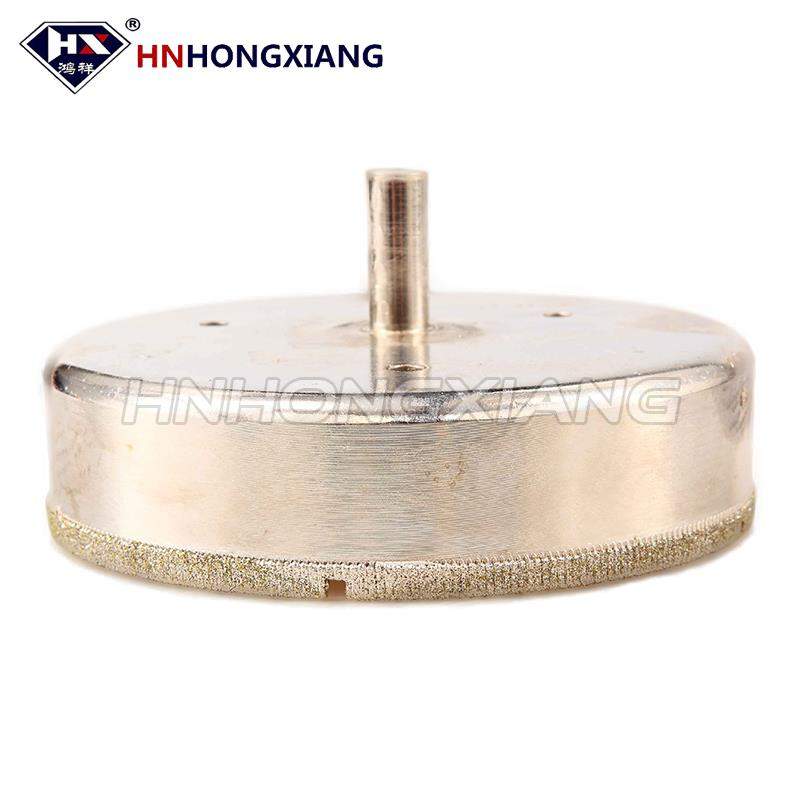

ELECTROPLATE DIAMOND DRILL BIT OF PICTURES AND DRAWING：

ELECTROPLATING DIAMOND DRILL BIT OF GENERAL PARAMETER:

ATTENTION:DIAMOND SIZE  OR OTHER SPECIAL PARAMETERS CAN BE CUSTOMIZED

ELECTROPLATED DIAMOND DRILL BIT OF APPLICATION:

Electroplated Diamond Drill Bit is commonly used for drilling ordinary glass(bathroom glass, kitchen glass, furniture glass, home appliances, glass, etc.) Such as: glass doors and windows, indoor large partition, glass table, wardrobe glass and other glass holes in the diameter of 1.5-150mm.

ELECTROPLATED DIAMOND DRILL BIT FOR APPLICABLE MACHINE:

manual glass drilling machine and  small glass bench drill machine,etc.

In beginning, the electroplated drill bit should start with 45 °beveling hole position when drill, Do not put the drill bit perpendicular to the glass,and the speed should be controlled about at 800-1000rpm/min. processing Glass thickness is 3-30mm. The glass hole`s diameter can be produced of 1.5-150mm.

Suitable for all the drilling machine brand on the market,such as Deway，ZXM，BOTTERO、BAVELLONI、bovone，Schiatti angelo, etc.

USE AND EFFECT

ATTENTION FOR USING GLASS DRILL BIT:

1,Before using the glass drill bit, you should better check the wheel is or not intact(Cracked, passivation).

2,Before drilling, you should better select the correct drilling speed, which need according to the thickness of glass.

3,Watering is necessary in the glass are drilling, which not only can improve the working efficiency and prolongs the service life of diamond wheel.

FAQ( FREQUENTLY ASKED QUESTIONS)

1, Drill bit`s diameter is Available for customized?

Answer: Yes! We can produce according to your specifications demand.

2, The length of the drill bit is Available for customized?

Answer: Yes! We can produce according to your specifications demand.

3,How many holes can be produced for each glass drill bit?

Answer:The life of the glass drill bit is mainly reflected on the number of holes can be produced in a certain thickness of the glass.

The operating environment and operating technology have a significant influence on the life of the glass drill bit. Reference data: each drill bit can drill 2800-4000 holes

4, What is your terms of payment?

Answer: T/T，Paypal, cash, L/C, online ,money grams and Western Union etc.

5, What is your terms of transportation?

Answer: TNT, DHL, EMS, Fedex,UPS,by air, by sea, china post and E-packed.etc.
