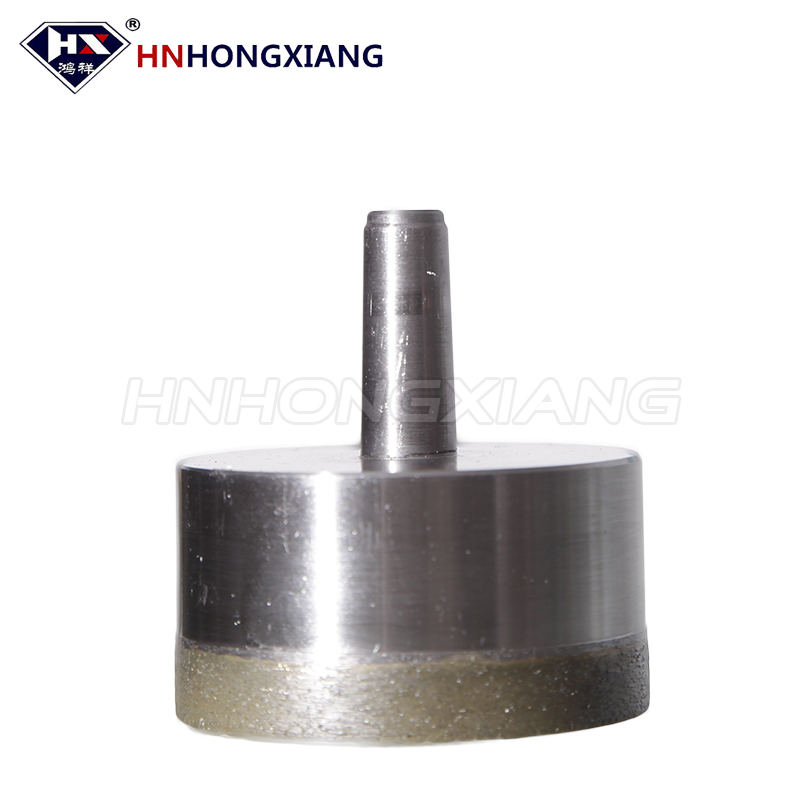

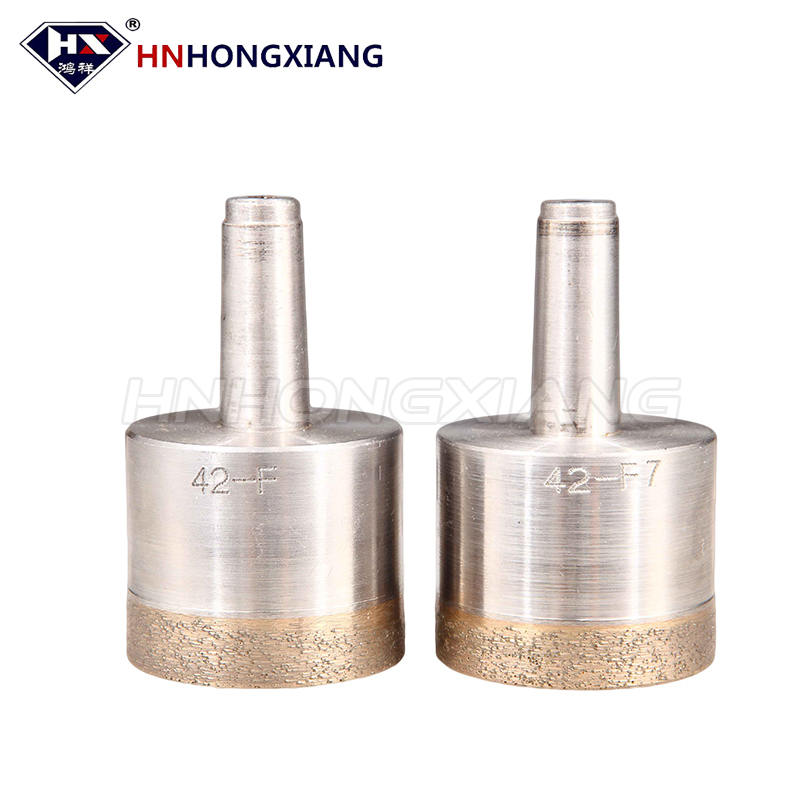

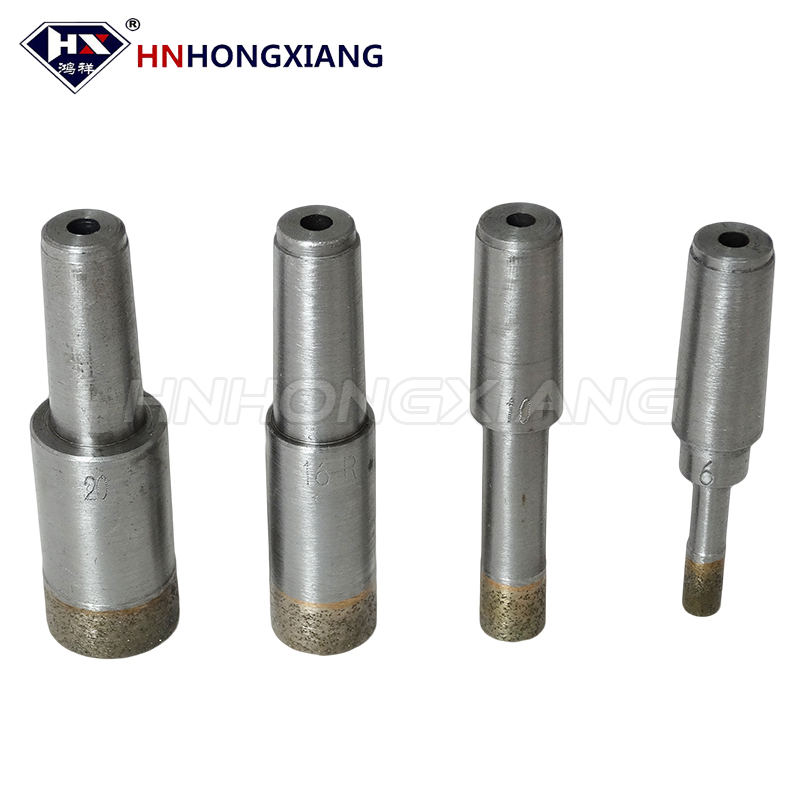

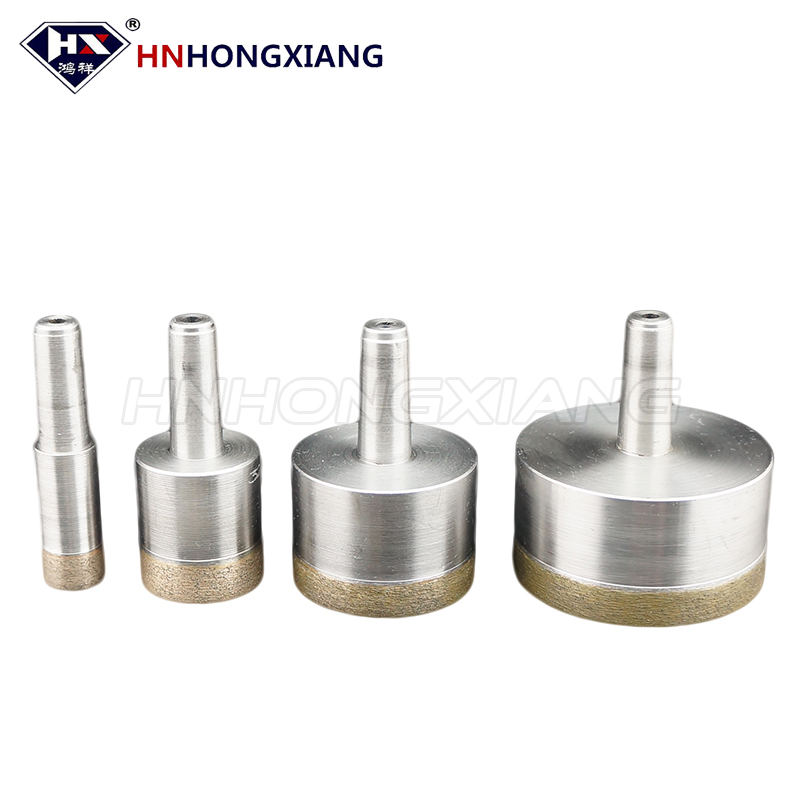

CONE SHANK DIAMOND DRILL BIT OF PRODUCT INTRODUCE:

Cone Shank Diamond Drill Bit is made of Premium metal powder and self-produced synthetic diamond grits, sintered in high temperature and high pressure. Diamond can be firmly fixed on the matrix, and not easy to fall off. The shank of the cone shank drill bit is 45 °taper, the total length of the drill bit is 60mm and 65mm, the maximum glass thickness can be drilled is 35mm, and the wall thickness of the drill bit is 1mm. Cone shank drill bit always work with an adapter together installed on the drilling machine, can also be placed on a small drilling machine alone.

CONE SHANK DIAMOND DRILL BIT OF ADVANTAGE:

Sharp grinding and easy excretion, good self-sharpening,  smoothly hole-edge , no broken and no vibration, well resistance, long service life and the working efficiency is dozens times than electroplated drill bit,etc.

CONE SHANK DIAMOND DRILL BIT OF GENERAL PARAMETER:

CONE SHANK DIAMOND DRILL BIT OF APPLICATION:

Cone Shank Diamond Drill Bit is commonly used for drilling ordinary glass(bathroom glass, kitchen glass, furniture glass, home appliances, glass, etc.) Such as: glass doors and windows, indoor large partition, glass table, wardrobe glass and other glass holes in the diameter of 5-100mm.

CONE SHANK DIAMOND DRILL BIT FOR APPLICABLE MACHINE:

Semi-automatic glass drilling machine,manual glass drilling machine,etc.

Straight Shank Diamond Drill Bit can be adapted to vall types of manual and semi-automatic drilling machines.(the speed is 100 (rpm), 2500 (rpm), the maximum speed can reach 4500 (rpm), etc.), drilling glass diameter is  4-100mm,processing Glass thickness is 3-30mm. In the processing of big volume production, our glass drill bits shows higher efficiency and longer service life characteristics,etc. Besides,easy to carry, our glass drill bits can be used with a chamfer, water swivel in the glass processing.

PROCESSING FOR MACHINES

The cone shank drill bit can be used with the adapter, the shank of the cone shank drill bit has a 45 ° angle, and then the adapter is only required to install the taper shank at one end of the shank(without diamond working layer), after pressing, The adapter is mounted on a cone shank drill bits.

Suitable for all the drilling machine brand on the market,such as Deway，ZXM，BOTTERO、BAVELLONI、bovone，Schiatti angelo, etc.

ATTENTION FOR USING GLASS DRILL BIT:

1,Before using the glass drill bit, you should better check the wheel is or not intact(Cracked, passivation).

2,Before drilling, you should better select the correct drilling speed, which need according to the thickness of glass.

3,Watering is necessary in the glass are drilling, which not only can improve the working efficiency and prolongs the service life of diamond wheel.

FAQ( FREQUENTLY ASKED QUESTIONS)

1, Drill bit`s diameter is Available for customized?

Answer: Yes! We can produce according to your specifications demand.

2, The length of the drill bit is Available for customized?

Answer: Yes! We can produce according to your specifications demand.

3, The thickness of the drill bit`s wall is Available for customized?

Answer: Yes! We can produce according to your specifications demand.

4,How many holes can be produced for each glass drill bit?

Answer:The life of the glass drill bit is mainly reflected on the number of holes can be produced in a certain thickness of the glass.

The operating environment and operating technology have a significant influence on the life of the glass drill bit. Reference data: each drill bit can drill 2800-4000 holes

5, What is your terms of payment?

Answer: T/T，Paypal, cash, L/C, online ,money grams and Western Union etc.

6, What is your terms of transportation?

Answer: TNT, DHL, EMS, Fedex,UPS,by air, by sea, china post and E-packed.etc.
