CONTINUOUS DIAMOND WHEELS CUP SHAPE OF ADVANTAGE:

 CUP wheel. Continuous diamond grinding wheel also named non-segmented diamond grinding wheel. Which is made of Premium metal powder and self-produced synthetic diamond grits, sintered in high temperature and high pressure.Working speed is fast and smooth, good surface of finishing, and widely used for coarse grinding and medium grinding in the processing of glass. Continuous diamond grinding wheels are usually installs on the 1# ,2#motor in glass straight edging machine for grinding, located at 3#,4# motor in glass straight edging machine is for chamfering.

Good sharpness, no chipping, better wear resistance, long service life, can grind glass with a variety of thickness .etc.

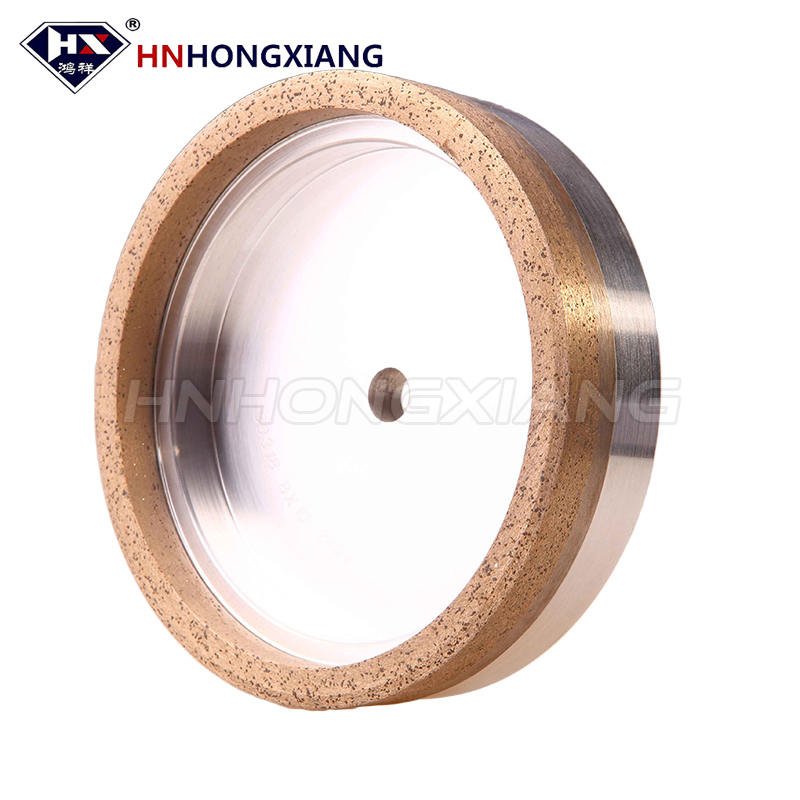

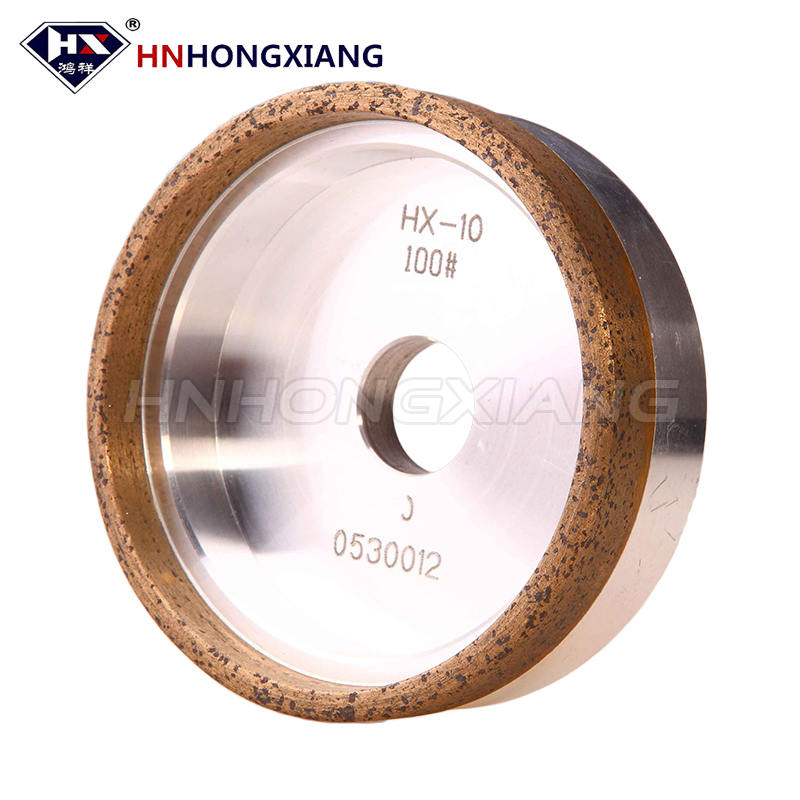

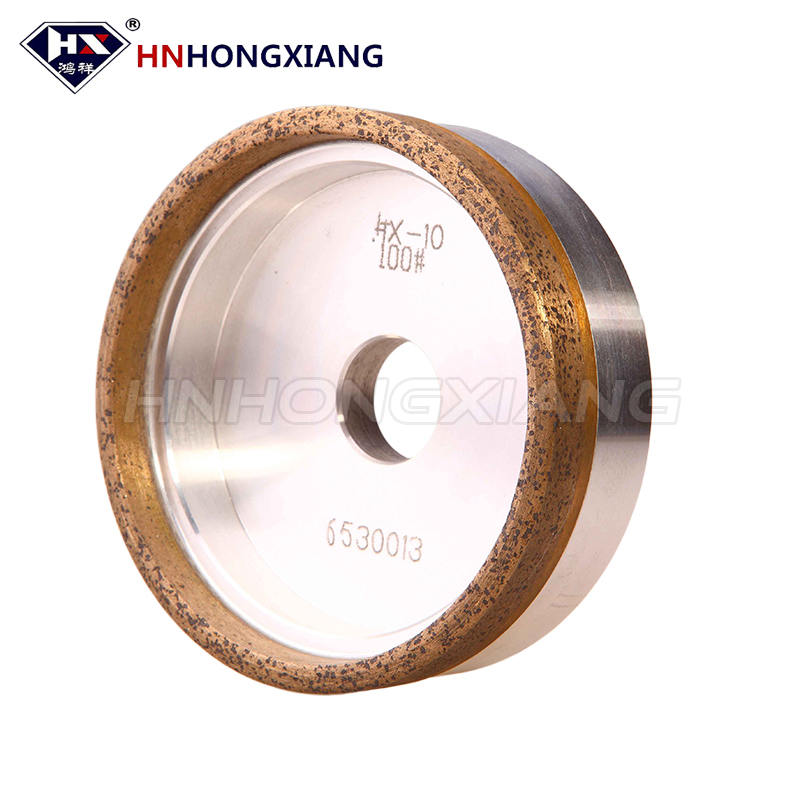

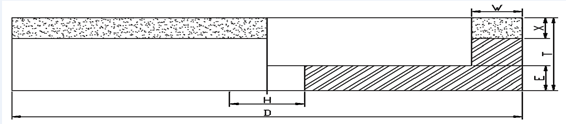

CONTINUOUS DIAMOND GRINDING WHEEL OF PICTURES AND DRAWING:

CONTINUOUS DIAMOND GRINDING WHEEL OF GENERAL PARAMETER:

SPECIAL PARAMETERS CAN BE CUSTOMIZED ACCORDING TO CUSTOMER NEEDS.

CONTINUOUS DIAMOND GRINDING WHEEL OF APPLICATION:

Continuous diamond grinding wheel is commonly used in processing of construction glass, furniture glass, electronics glass, appliances glass, and bothroom glass,etc. Such as architectural glass doors and windows, glass table, glass rods, indoor screen glass,glass office partition wall, etc.

CONTINUOUS DIAMOND GRINDING WHEEL FOR APPLICABLE MACHINE:

glass straight edging machine, glass double edging machine.

Located at straight edging machine and double edging machine`s 1# ,2# grinding motor for medium grinding, diamond grits are 80#,100#; located at straight edging machine and double edging machine`s 3# ,4# grinding motors are always be used for chamfering, the universal diamond grits are 180#,240#. glass thickness is from 3 to 30mm can be grinding. Of course, We can provide professional guidance on the choice of grinding wheel and the installation,according to our customer`s need.

Suitable for all the edging machine brand on the market,such as Deway，ZXM，BOTTERO、BAVELLONI、bovone，Schiatti angelo, etc.

THESE WHEELS CAN BE WORKED WITH TOGETHER:

Resin diamond grinding wheel,diamond pencil edge grinding wheel, 10S polishing wheel.X5000 polishing wheel,or CE-3 polishing wheel.

ATTENTION FOR USING DIAMOND WHEEL:

1, Before using diamond wheel, you should better check the wheel is or not intact(Cracked, passivation).

2,According the process of “coarse grinding-medium grinding-fine grinding-fine polishing”, the wheel should be install in the correct position and suitable machine.

3,The wheel should install the correct position, and should be passed static balance test before using.

4,Water is very important in the using of diamond wheel to grinding, which not only can improve the working efficiency and prolongs the service life of diamond wheel.

5,To choose an appropriate speed is also important. Speed too fast, force too much, May cause damage to the grinding wheel, and even the operator injured.

6,In the grinding process if the grinding wheel is not sharp enough or blocked,the grinding wheel should be trimmed slightly.

7,diamond wheel is a valuable tools,don`t leave in disorder, especially can not be affected with damp, erosion, impact,and also should not be exposed to high temperature.
